What are jigs and fixtures

cnc_machining_services_china

CNC machined jigs, For those who dabble in manufacturing or prototyping, terms “jig” and “ fixture ” appear frequently, especially when talking about machining – a subtractive production process for plastic and metal parts. But what are jigs and fixtures, what are jigs and fittings used for, and why are jigs and accessories so important?

Although often grouped together, these two tools play different functions in the manufacturing procedure and are frequently used with diverse pieces of production equipment. They both help to produce more accurate and repeatable parts, and both can be made using a few different developing techniques, but jigs and fittings remain fundamentally distinct.

This article will serve as an introduction for anyone who needs lures and accessories explained. It will look at the main differences between jigs and fixtures, as well as their main applications and how they can become produced.

What are lures and add-ons?

Before getting into the specific attributes of jigs and fixtures, we should take a step back and ask the broader question of what type of object jigs and fixtures will be.

We may think of both of these items as equipment or pieces of tooling: implements used in the fabrication of new parts that are distinct from the creation machinery ( e. g. CNC machine, 3D printer) and the parts being produced. ( Other examples of tooling include material forming devices like molds and dies, and cutting tools such as drill bits. )

More specifically, both jigs and features – yet especially accessories – may end up being considered workholding products: products used to keep a workpiece (the in-progress part becoming made) stable and secure during making.

What is a jig?

We’ll start our explanation of jigs and components with jigs. In short, a jig is a tool utilized to control or guide the movement of a trimming device this kind of as a exercise (and sometimes to simultaneously hold the workpiece).

So why do manufacturers use jigs? By introducing a device that precisely guides the motion of a slicing gadget, a manufacturer can easily, for example , guarantee repeatability: ensuring the same cut is usually created in exactly the same place on several duplicates of a component. The same jig can be used over and over, resulting inside the same outcome with each make use of.

Since their purpose is primarily to guide and direct trimming tools, lures are most commonly used intended for manual work, i. electronic. manual engineering and drilling. (CNC machines are less dependent on jigs, since they are designed to provide micron-level precision without assistance; their reducing gear happen to be “ guided ” by computer instructions. )

Types of lure:
Template jig: A simple jig that can become fitted onto the workpiece, it has holes through which a slicing application (e. g. exercise ) can end up being guided.
Plate jig: Similar to a template jig but with workout bushes instead of just openings.
Angle-plate jig: Used to prop up the workpiece at an angle to facilitate the drilling of e. g. diagonal openings.
Leaf lure: A jig with a hinged leaf that might turn into swung open and closed for faster loading or unloading.
Diameter lure: Used to enable the going of rounded workpieces that cannot easily become secured in other types of jig.
Just what fitting?
Fixtures have a couple of features in common with jigs, but their purpose is essentially different. The sole function of a fitting is definitely to maintain a workpiece steady and secure during development; a fitted can be therefore a workholding system in the truest sense.

Fittings may perform a number of features. By keeping a workpiece fully protected, they ensure accuracy and repeatability. They will can also be adjusted to maintain a workpiece at a specific angle, allowing to get cutting operations in a range of directions. Accessories also minimize errors and assure the safety of workers by preventing the workpiece from getting accidentally flung from the function table. Like jigs, accesories are frequently utilized in engineering procedures.

You are likely to see fittings in use on CNC machining centers and other automated manufacturing gear. CNC products can direct their cutting equipment without the use of jigs, but they will not function properly if the workpiece cannot always be kept protected.

While jigs are typically held in place with fasteners or even held manually by the equipment operator, equipment have a variety of clamping options, including hydraulic, pneumatic, and vacuum systems for applying the requisite force.

Types of light fixture:

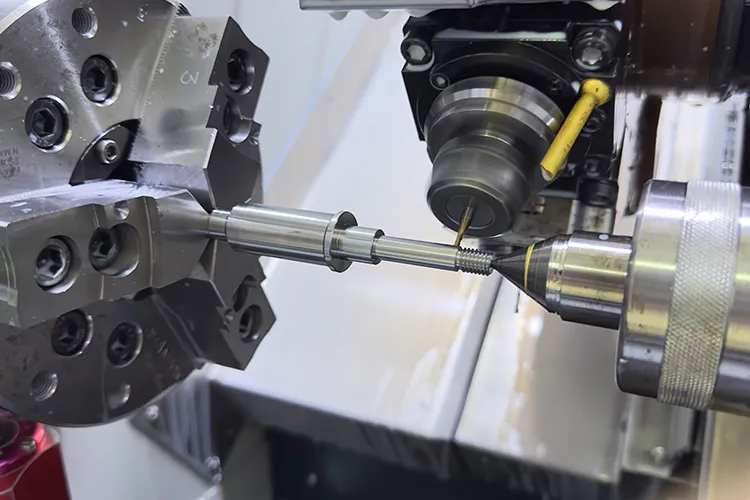

Turning installing: Typically mounted upon the machine spindle or a face plate, turning lighting fixtures are useful for more complex lathe-made parts.

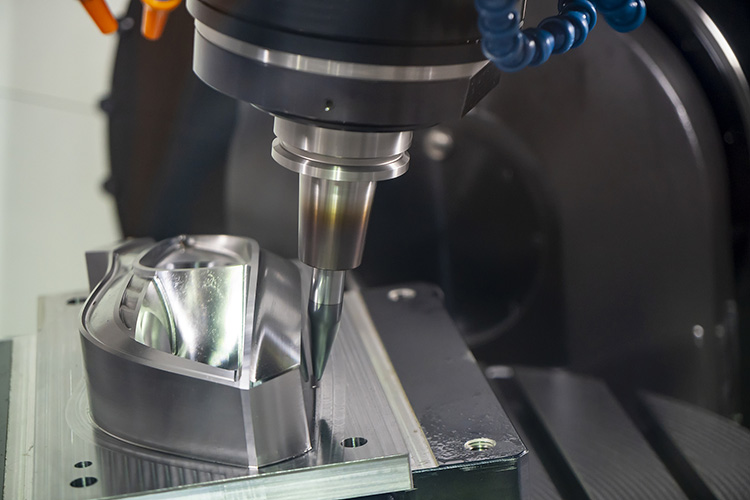

Milling fixture: Typically guaranteed to the function desk with nails, these fixtures allow a variety of milling features.
Drilling appropriate: Comprising hole and bushing, drilling gadgets are sometimes used in place of (or in addition to) lures.
Grinding fitting: Utilized to support a workpiece during grinding procedures.
The difference between jigs and fixtures
Are jigs and fixtures the same thing? No, they are not really: although both are types of tooling applied in processing, and although they share some of the same traits, they are unique objects.

The primary difference between a jig and a light fixture is that a jig plays some role in controlling the position or perhaps motion of another instrument, generally a cutting software, while a fixture is concerned with the position of the workpiece (the piece of materials becoming turned into a new part).

A jig occasionally performs two roles, manipulating the placement of both the workpiece and another tool, while a suitable performs one.

In practice, this means that jigs and fittings are often employed in different situations. Applications of lures are regularly found in manual job, where humans need assist to move a minimizing program to the exact point required (to ensure that a drill makes a opening in exactly the right spot, pertaining to example). On the additional hand, applications of accessories are discovered in both manual and automatic function: reducing products perform not really always require guidance, nevertheless a workpiece usually needs to become guaranteed to make sure accuracy and security.

Additional variations between jigs and fixture include:

Jigs are often fairly lightweight, whilst extras must turn out to be heavy enough to provide stability
Lures may possibly be held in place manually, whilst accessories are mechanically anchored to the table
Jigs may well need more intricate design, although fittings are usually more straightforward
Advantages of lures and features
The use of jigs and fixtures during production can easily lead to significant benefits in conditions of production and part quality. The primary benefits consist of:

Increased creation rate
Eliminates require meant for manual measurement and alignment
Consistency and accurate across multiple parts
Reduced dependence upon manual skill of machinist
Decreased dependence about post-manufacturing top quality control measures
Improved security for employees
Allows machinist to adjust feeds and speeds for faster production
Components of jigs and accesories
Jigs and fashion accessories might show up just like basic tools, however they are generally made up of many sections. These areas will be:

Body: The bulk of a jig or fitting is usually its body, typically a solid piece of metallic strong enough to withstand significant forces.

Clamping gadgets: The clamping gadgets of the jig or perhaps installation happen to be employed to keep a workpiece safeguarded and resist cutting off causes.

Locating items: Typically manufactured from hardened steel, locating devices this kind of because pins are applied to put the jig or light fixture in the correct place.

Bushings: Typically made of unit steel, bushings are used in some jigs to guideline the equipment tool in its operation.

How to make jigs and fixtures
There are a few different options when it comes to manufacturing lures and lighting fixtures. While COMPUTER NUMERICAL CONTROL machining has been the dominant method for some time, 3D printing is certainly now a viable alternative.

Although jig and fixture components are typically metal – more specifically steels this type of carbon steels, mild steels, and die terme conseillé – it is also viable to make plastic material jigs and fixtures if low clamping causes are needed. Nylon is definitely a common plastic-type utilised in jig and connecting development.

Design considerations

Jigs and fittings should turn into foolproof to prevent misplacement
Cost of creation ought to always be less than predicted cost savings
Location points will need to become clear (and ideally adjustable) to minimize idle period
Clamping arrangements should certainly certainly not become complicated
Jigs and fixtures should be robust enough designed for make use of although light-weight enough for easy handling
Tools ought to possess ample clearance
There must be adequate space for chip clearance
CNC machining lures and accessories
Best just for: Robust metallic jigs and products, basic geometries

At present, CNC engineering is the dominating method for making jigs and fixtures. This is generally because CNC machining is certainly cost-efficient for small quantities (and jigs and features tend to end up being custom built for particular parts).

CNC machined jigs and accessories will be ideal when the jigs and accents require to turn into strong nonetheless certainly not particularly difficult with regards to their geometry. Most stainlesss steel jigs and accesories happen to be CNC machined.

3D stamping jigs and fixtures
Greatest for: Rapid and plastic-type material jigs and fittings, complicated geometries

3D printing or additive creation is an alternative to CNC engineering for rapidly producing jigs and lighting fixtures. Like COMPUTER NUMERICAL CONTROL devices, THREE DIMENSIONAL printers are efficient in fabricating one-off goods.

3 DIMENSIONAL printed lures and accessories can possess more challenging geometries than machined ones, and 3D IMAGES printing could prove to be a more affordable option for plastic material jigs and fixtures (via SLS, for example). In the majority of cases, however, finely-detailed machined lures and fixtures have got superior strength.
