CNC Milling vs. CNC Turning: Understanding the Differences and Applications

Table of Contents

  1. Introduction to CNC Milling and CNC Turning
  2. Understanding CNC Milling
  3. Exploring CNC Turning
  4. Comparing CNC Milling and CNC Turning
  5. When to Choose CNC Milling or CNC Turning
  6. Applications and Industries Utilizing CNC Milling and CNC Turning
  7. Advanced CNC Machining Technologies
  8. Choosing the Right CNC Machining Service Provider
  9. Conclusion

CNC machining is a widely used manufacturing process that enables the production of precise and complex parts. Within the realm of precision CNC machining, there are two primary methods: CNC milling and CNC turning. While these two techniques share similarities, they have distinct differences in terms of their processes, capabilities, and applications. In this comprehensive guide, we will delve into the intricacies of CNC milling and CNC turning, exploring their unique features, advantages, and examples of parts they can produce.

The CNC turning milling services, CNC milling services, CNC turning services.

1. Introduction to CNC Milling and CNC Turning

CNC machining is a manufacturing process that utilizes computer numerical control to guide cutting tools in removing material from a workpiece. This technology provides enhanced precision, repeatability, and efficiency compared to traditional manual machining methods. CNC milling and CNC turning are two primary methods within the broader CNC machining domain.

CNC milling involves the use of a rotating cutting tool to remove material from a workpiece. It is a versatile process capable of producing a wide range of shapes and features. On the other hand, CNC turning utilizes a lathe machine where the workpiece rotates while a stationary cutting tool moves to shape the material. This method is particularly effective for creating cylindrical and symmetrical parts.

2. Understanding CNC Milling

2.1 CNC Milling Process

CNC milling begins with a digital 3D model of the desired part. This model is translated into computer code using computer-aided design (CAD) and computer-aided manufacturing (CAM) software. The code controls the movements of the milling machine, dictating the tool’s path and cutting parameters.

During the milling process, the workpiece is clamped to a table or fixture, and the milling tool rotates at high speeds while moving along multiple axes. The tool cuts into the material, removing excess material and creating the desired shape. This process is repeated until the final part is achieved with the desired precision.

2.2 Tools and Cutting Methods in CNC Milling

CNC milling employs various types of cutting tools to achieve different types of cuts and machining operations. Some common types of milling tools include end mills, face mills, ball nose mills, and slot drills. These tools come in different shapes, sizes, and configurations to accommodate specific machining requirements.

Different cutting methods are employed in CNC milling, including face milling, peripheral milling, pocket milling, and contour milling. Face milling involves cutting across the workpiece’s surface, while peripheral milling involves cutting along the workpiece’s edges. Pocket milling removes material from a pocket or cavity within the workpiece, and contour milling follows a specific contour or shape.

2.3 Examples of Parts Made with CNC Milling

CNC milling is widely used across various industries and can produce a diverse range of parts. Some examples of parts commonly made with CNC milling include:

  • Complex mechanical components
  • Prototypes and models
  • Automotive parts
  • Aerospace components
  • Medical devices
  • Electronic enclosures
  • Customized tools and fixtures

The versatility of CNC milling allows for the production of intricate and precise parts, making it a preferred choice for many manufacturing applications.

3. Exploring CNC Turning

3.1 CNC Turning Process

CNC turning, also known as lathing, involves the rotation of a workpiece on a spindle while a stationary cutting tool shapes the material. The workpiece is securely held in place by a chuck, and the cutting tool moves along the workpiece’s surface, removing material to create the desired shape.

The CNC turning process begins with the design of a 3D model, which is then converted into machine instructions using CAD/CAM software. These instructions dictate the movements of the lathe machine and the cutting tool, ensuring precise and accurate machining.

3.2 Tools and Cutting Methods in CNC Turning

CNC turning utilizes a variety of cutting tools to perform different operations. Some common turning tools include external turning tools, internal turning tools, threading tools, and grooving tools. These tools have specific geometries and cutting edges to achieve different types of cuts and features.

The cutting methods in CNC turning include facing, turning, grooving, threading, and parting. Facing involves creating a flat surface at the end of a workpiece, turning shapes the outer diameter of the workpiece, grooving creates grooves or channels, threading produces threads, and parting cuts off the workpiece to separate it from the rest of the material.

3.3 Examples of Parts Made with CNC Turning

CNC turning is particularly suited for creating cylindrical and symmetrical parts. Some examples of parts commonly made with CNC turning include:

  • Shafts and axles
  • Bushings and bearings
  • Pipe fittings
  • Connectors and couplings
  • Valves and fittings
  • Pulleys and gears
  • Fasteners and screws

CNC turning excels in producing precise round features and components, making it a valuable process in various industries.

4. Comparing CNC Milling and CNC Turning

4.1 Primary Differences between CNC Milling and CNC Turning

CNC milling and CNC turning have distinct differences in their processes, tooling, and applications. The main differences between the two techniques are as follows:

  1. Material Rotation:In CNC milling, the workpiece remains stationary while the cutting tool rotates. In CNC turning, the workpiece rotates while the cutting tool remains stationary.
  2. Part Geometry:CNC milling is capable of producing parts with complex shapes and features, including pockets, slots, and contours. CNC turning is best suited for producing cylindrical and symmetrical parts.
  3. Tooling and Cutting Methods:CNC milling uses a wide range of cutting tools and methods to achieve various machining operations. CNC turning employs specific turning tools and techniques to shape the workpiece.

4.2 Advantages of CNC Milling

CNC milling offers several advantages that make it a preferred choice for many manufacturing applications:

  • Versatility: CNC milling can produce parts with complex shapes, contours, and features, making it suitable for a wide range of applications.
  • Precision: The milling process allows for high precision and tight tolerances, ensuring the accurate production of parts.
  • Efficiency: CNC milling can remove material quickly and efficiently, reducing production time and costs.
  • Flexibility: With the ability to use various cutting tools and techniques, CNC milling offers flexibility in machining different materials and achieving specific surface finishes.

4.3 Advantages of CNC Turning

CNC turning provides unique advantages that make it ideal for certain applications:

  • Round Part Production: CNC turning excels in producing cylindrical and symmetrical parts, making it the preferred choice for components like shafts, bushings, and connectors.
  • Efficiency: Turning operations can be performed rapidly, enabling high-volume production of round parts.
  • Cost-Effective: CNC turning is often more cost-effective for producing round parts compared to CNC milling.
  • Simplicity: The turning process is relatively straightforward, with fewer tooling requirements and setup time compared to milling.

5. When to Choose CNC Milling or CNC Turning

Choosing between CNC milling and CNC turning depends on several factors, including part design, geometry, material, and production requirements. Here are some considerations to help determine the appropriate technique:

5.1 Factors to Consider in Choosing Between CNC Milling and CNC Turning

  1. Part Design: If the part requires complex shapes, intricate details, or non-cylindrical features, CNC milling is the preferred choice. For round or cylindrical parts, CNC turning is more suitable.
  2. Material: Certain materials may be better suited for either CNC milling or CNC turning. For instance, milling is often the go-to method for machining harder materials like stainless steel, aluminum, and titanium. Turning is well-suited for softer materials like plastics and brass.
  3. Production Volume: For high-volume production of round parts, CNC turning is generally more efficient and cost-effective. CNC milling is more versatile and can accommodate both low and high-volume production with complex parts.
  4. Tolerance Requirements: If the part requires tight tolerances and high precision, CNC milling is better suited due to its ability to achieve complex geometries with greater accuracy.

5.2 Combining CNC Milling and CNC Turning

In some cases, a hybrid approach combining CNC milling and CNC turning may be beneficial. This approach allows for the production of parts that require both cylindrical features and complex geometries. By performing turning operations first, followed by milling operations, manufacturers can achieve the desired part design and functionality.

6. Applications and Industries Utilizing CNC Milling and CNC Turning

6.1 Industries Benefiting from CNC Milling

CNC milling finds applications in various industries, including:

  • Automotive: CNC milling is used to produce engine components, transmission parts, and chassis components.
  • Aerospace: CNC milling is utilized for manufacturing aircraft components, turbine blades, and structural parts.
  • Medical: CNC milling is employed in the production of medical implants, surgical instruments, and prosthetics.
  • Electronics: CNC milling is used to create custom enclosures, connectors, and heat sinks for electronic devices.
  • Prototyping: CNC milling enables the rapid production of prototypes for product development and testing.

6.2 Industries Benefiting from CNC Turning

CNC turning is widely used in industries such as:

  • Automotive: CNC turning is employed to produce shafts, axles, pulleys, and other round components.
  • Manufacturing: CNC turning is utilized for the production of fasteners, bushings, fittings, and connectors.
  • Plumbing: CNC turning is used to create pipe fittings, valves, and couplings.
  • Renewable Energy: CNC turning is employed in the production of turbine components and windmill parts.
  • Aerospace: CNC turning is utilized for manufacturing aerospace bearings, bushings, and connectors.

7. Advanced CNC Machining Technologies

7.1 Multitasking Machines

Multitasking machines combine the capabilities of both CNC milling and CNC turning in a single unit. These advanced machines can perform milling and turning operations simultaneously, enabling the production of complex parts with enhanced efficiency and accuracy. Multitasking machines are particularly useful for applications that require seamless integration of milling and turning operations.

7.2 5-Axis Machining

5-axis machining expands on the capabilities of traditional 3-axis milling by allowing for simultaneous movement along five axes. This technology enables the production of complex geometries, intricate contours, and undercuts with a single setup. 5-axis machining provides greater flexibility, precision, and efficiency in manufacturing highly intricate parts.

8. Choosing the Right CNC Machining Service Provider

When selecting a CNC machining service provider, it is crucial to consider their expertise, capabilities, and track record. Look for a provider that offers a wide range of CNC machining services, including both milling and turning. Ensure that the provider has the necessary equipment, software, and skilled machinists to meet your specific requirements. Additionally, consider factors such as turnaround time, quality control measures, and customer reviews when making your decision.

9. Conclusion

CNC milling and CNC turning are two fundamental machining techniques that play a crucial role in modern manufacturing. While they share similarities in terms of their reliance on computer numerical control and their ability to produce precise parts, they have distinct processes, capabilities, and applications. Understanding the differences between CNC milling and CNC turning is essential in choosing the right method for your specific part design, material, and production requirements. By leveraging the strengths of each technique, manufacturers can achieve optimal results and meet the demands of various industries.

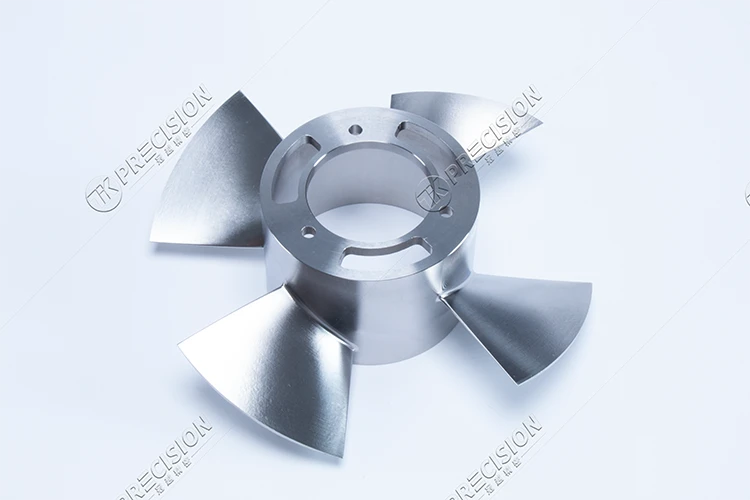

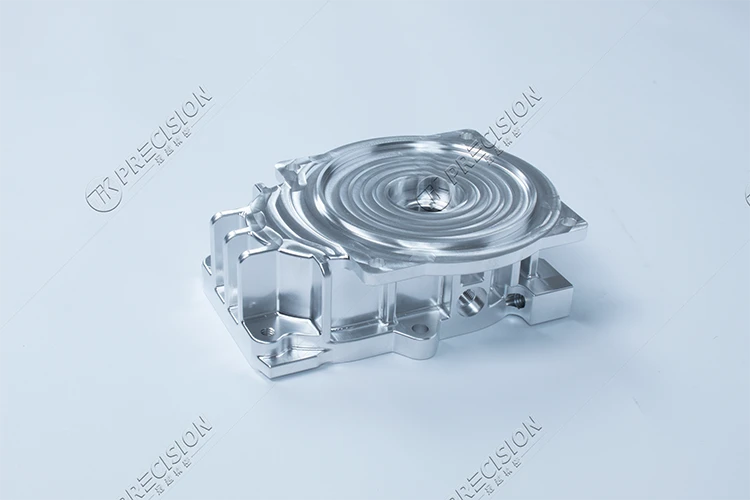

Rapid prototype product display
