CNC machining is a subtractive manufacturing process that involves the use of computerized machine tools to manufacture custom-designed parts. This technology has transformed the way we produce millions of items from simple mass-produced goods to complex components in airplanes, cars, and motorcycles. It is a valuable use for digital fabrication in almost every industry. In this guide, we will provide a comprehensive overview of CNC machining, including its basics, operations, types of machines, and materials used.

What is CNC Machining?

CNC (Computer Numerical Control) machining is a process that involves the use of computerized machine tools to manufacture custom-designed parts. The process uses programming codes to direct machine tools to chip at (subtract) a material until the material forms the input designed part. This technology extends beyond machine parts and serves as a crucial manufacturing technique for individuals seeking hands-free production.

CNC machines form an integral part of virtually everything we use by providing unrivalled manufacturing speed and precision. It has led to thousands of innovative products that were impossible to produce only a few years ago.

How CNC Machining Works

CNC machining is a subtractive and computerized process. Therefore, understanding how it works comes from understanding the relationship between the computer, the required operations, and the workpiece. Based on this relationship, CNC machining’s mechanism can be divided into four different stages:

Stage 1: Create a CAD Design

Creating a Computer-Aided Design (CAD) either in 2D or 3D format is the first thing to do. CAD software is used to render any parts with the right technical specifications. However, the workpiece’s properties have a huge role to play in the design and how it turns out.

Stage 2: Convert the CAD File to a CNC Program

The next step is converting the CAD file to a CNC-compatible file format. This is done using G-Code or dedicated software called Computer-Aided Manufacturing (CAM).

Stage 3: Setup the CNC Machine

Before machining begins, the CNC machine is set up with the proper positioning of the workpiece and tooling. This process ensures that the machine operates with the required precision.

Stage 4: Begin Machining

Machining begins after configuration. The machine removes material from the workpiece until the end product matches the custom design.

Types of CNC Machines

CNC machines carry out different machining processes and can be classified accordingly. The most common processes are:

Milling

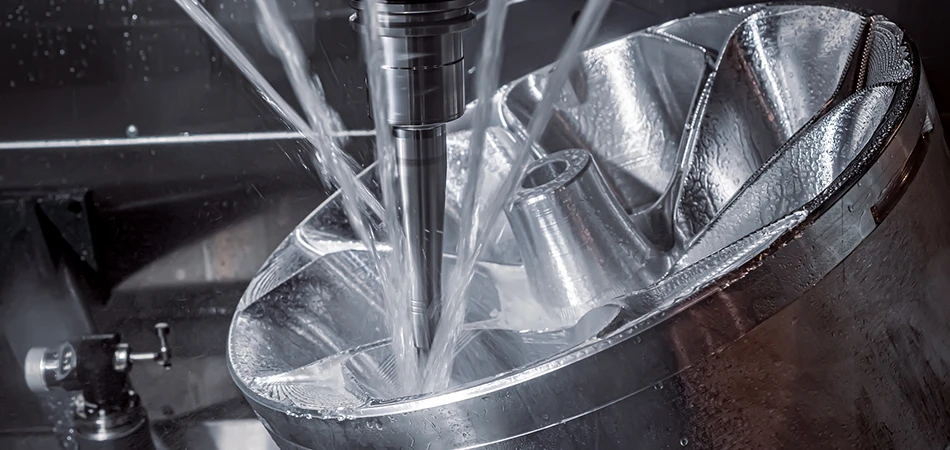

Milling

Milling is the most widely used CNC machining process that provides high speed and precision. It involves rotating cutting tools positioned on the machine spindle, moving them relative to the workpiece, and shaping them to the desired dimensions.

Milling can take different forms. For instance, in plain milling, the cutting tool removes material on the workpiece surface with the workpiece perpendicular to the tool, whereas face milling has grinders or cutters facing down.

Similarly, angular milling has tools set at an angle to produce details like grooves and dovetails, and form milling is used for contours and curves.

Routing

Routing is similar to milling, but the cutting tools move along three axes, and the workpiece remains stationary. This produces faster cuts without forgoing accuracy. CNC routers are used for intricate shapes like carved furniture and musical instruments.

Turning and Lathes Machines

Turning and Lathes Machines

Here the workpiece is turned around an axis, and a cutting tool is applied. The process is used to produce items as diverse as car engine parts such as pistons and camshafts, table legs, and cricket bats.

Drilling

In drilling, drills are used over the workpiece to make holes, and the resulting parts can then undergo further processing or move on to assembly. CNC drills are especially effective on mass-produced wooden items such as furniture.

Grinding

Grinding with a CNC machine means using rotating flat ceramic or diamond grinding wheels to remove stock materials at high speeds. This is also used for sanding, polishing, and smoothing. Parts made with CNC grinders include different car components, engineered parts in different industries, and tools.

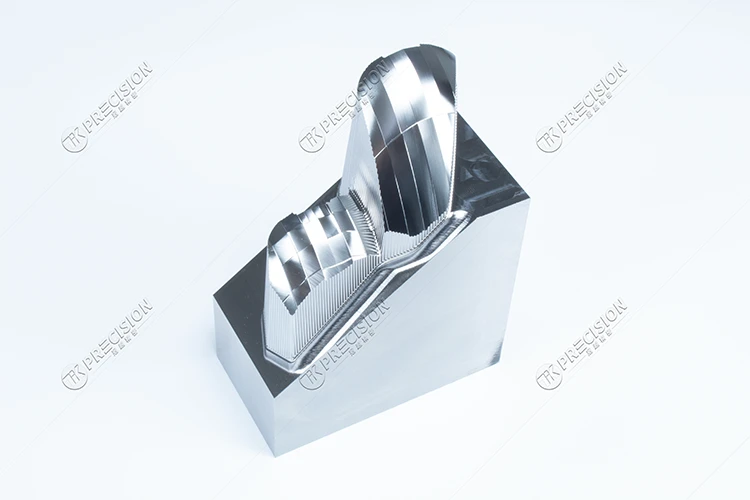

While these are the main processes, these machines are also used in high-tech industries that use newer technologies such as EDM or electrical discharge machining (when making tool moulds and dies), and laser or water-jet cutting, especially through harder materials.

CNC Machine Cutters

CNC machines are built differently, and there are different types of cutters or end mills. Here are some common types:

Flat Endmills

These are the most commonly available type of cutter. They’re efficient and cheap. Flat Endmills are ideally suited for machining of flat bottom cuts and vertical walls.

Bullnose Endmills

The Bullnose profile cutters are similar to Flat Endmill in that they share a common rectangular side profile but with an additional radius at the bottom corner of the flutes. They are great for quickly removing material while leaving a small bottom radius in pockets.

Ball Endmill

The Ball Endmill has a full radius at the bottom of the flutes. These cutters can be utilized for complex surfacing as the contact point between the tool and material surface is constantly changing with variations in the slope of the surface.

Drills

Drills are used exclusively for making vertical holes in parts. There is no side-to-side or horizontal motion of the tool when using drills. The finished size of the hole will be dictated by the diameter of the tool itself.

Materials Used in CNC Machining

A wide range of materials can undergo CNC machining, provided they have sufficient hardness. This includes metals, alloys, plastics, hard and soft woods as well as glass, foam and stone. Most machines aren’t picky about the material they can work on as long as the correct tooling is used.

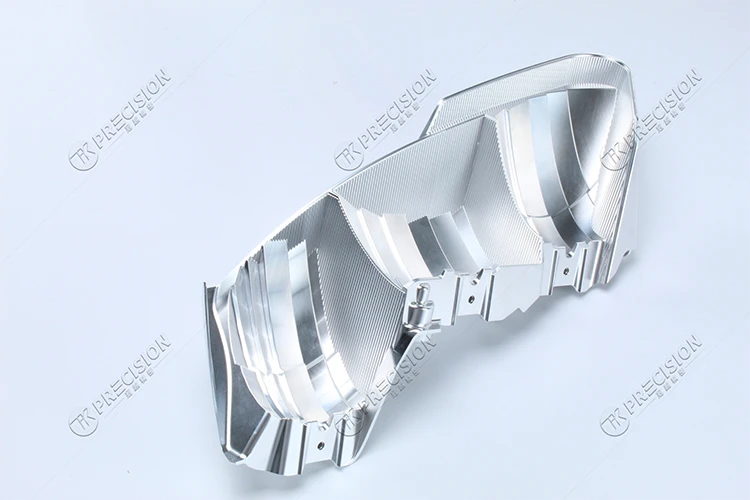

Metals

Metals

CNC machines are the quick solution for machining metals into precision parts. Aluminum is one of the most machined materials owing to its low weight, high strength, and rust resistance, and the ability to be treated for additional strength and improved appearance. Different Aluminum grades such as 6061 and 7075 are commonly used in CNC machining to produce items like bike frames, laptop housings, car parts, and more.

Magnesium is used widely for electronics, and where low weight is necessary, such as MAG alloy wheels, whereas cast iron is abundantly used where strength is key, such as hand tools. High-tech equipment needing unsurpassed strength has CNC-machined titanium parts.

Alloys

Stainless and carbon steel also rival Aluminum and can be easily and precisely machined to the desired item. Typical cases are fasteners such as bolts and screws, and rebar. Brass and bronze are copper alloys seen in decorative fittings, such as door knobs and handrails.

Plastics

Plastics

There are hundreds of types of plastics, and these can undergo CNC machining. This includes Nylon, known for its flexibility and high strength, ABS plastic commonly seen in product prototypes, Dierin found in automotive parts and construction, PEEK, a plastic alternative to metals used in medical equipment and semiconductors and Acrylic (or Plexiglass) seen in items like aircraft windows and car light housings.

Why CNC Machining is Important

CNC machining plays a crucial role in modern manufacturing. It is a quick, efficient, and precise method of producing complex parts with tight tolerances. CNC machines can run on their own and perpetually, which leads to faster production and increased efficiency. The whole process is fully automated, so the level of precision is something even the most skilled machinist can’t replicate on manual machines. Machined products are without flaws or defects, and items are produced with uniform consistency.

With machines running optimized software, there’s a lower likelihood of trial and error as in manual machining, but more so in repetitive work that additionally requires parts and components to be produced to tighter tolerances. In this sense, there’s also less material waste, which further reduces costs.

Furthermore, the whole process is fully automated, so the level of precision is something even the most skilled machinist can’t replicate on manual machines. Machined products are without flaws or defects, and items are produced with uniform consistency. And, since CNC machines can run on their own and perpetually, they lead to faster production and increase efficiency.

Benefits of CNC Machining

CNC machining offers several benefits in modern manufacturing processes. These include:

Precision

CNC machines provide unparalleled precision in manufacturing parts. They can produce complex parts with tight tolerances that would be difficult to achieve with manual machines.

Speed

CNC machines work much faster than manual machines. They can run for hours without interruption, producing parts at high speed.

Consistency

CNC machines can produce identical parts with uniform consistency. This is important when manufacturing products that require precision and consistency.

Automation

CNC machines can run on their own, significantly reducing the need for human intervention. This leads to increased efficiency and reduced labor costs.

Waste Reduction

CNC machines produce less waste than manual machines. This is because they are optimized for material utilization, which reduces the amount of material that goes to waste.

Conclusion

CNC machining is a crucial manufacturing process that has transformed the way we produce millions of items. It allows for precision, speed, consistency, and waste reduction, making it an essential technology in modern manufacturing. Understanding the basics of CNC machining, the types of machines, materials used, and the benefits it offers are essential for anyone interested in modern manufacturing processes.
