Part Junction Plate

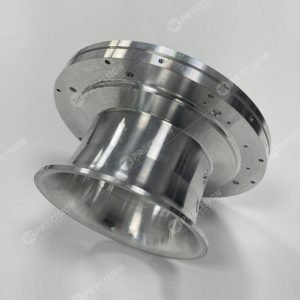

Processing method: five-axis CNC machining
Highest precision: 0.01mm
Surface treatment: none

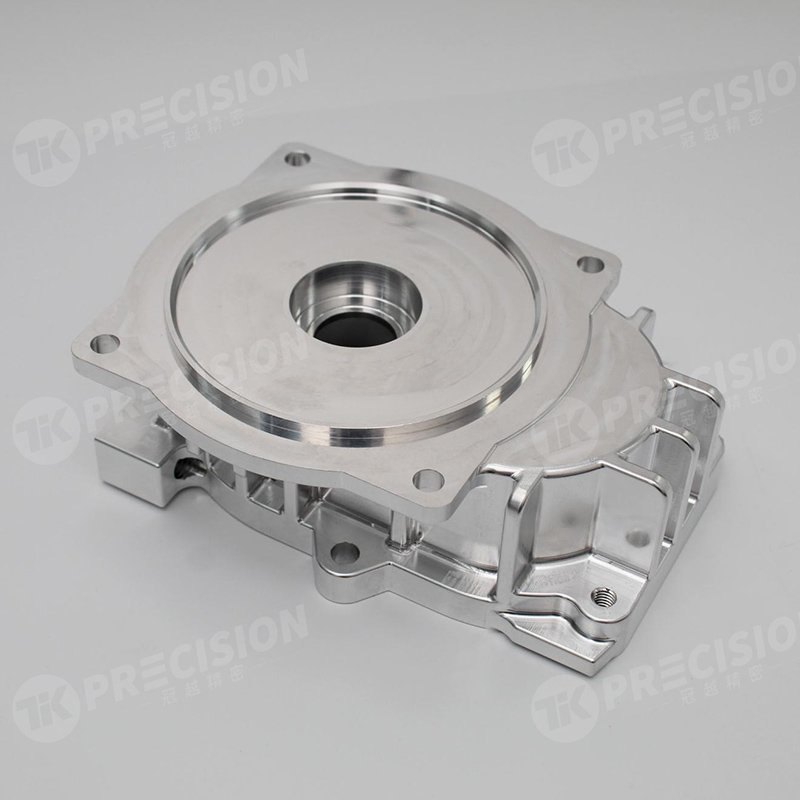

Part Junction Plate CNC machining
CNC machining is one of the most commonly used manufacturing processes in the world. It has become an essential tool for producing high-precision parts, and it’s been used in the automotive, aerospace, medical and other industries for decades. But one of the most important uses for CNC machining is creating part junction plates, which are used to join two or more parts together. Part junction plates are a critical component in any product assembly, and they must be designed and manufactured with extreme precision. In this blog post, we will explore how CNC machining is used to produce part junction plates and why it’s so important for manufacturers to get it right.
Part Junction Plate CNC machining basics
CNC machining is a process of cutting and shaping material using computer-controlled tools. The process can be used to create parts with very precise dimensions and tolerances. In most cases, CNC machining is used to create prototypes or small batch production runs.
There are several steps involved in CNC machining a part junction plate. The first step is to create a computer model of the desired part. This model can be created using CAD software or by scanning an existing part. Once the model is created, it is saved as a file that can be imported into the CNC machine’s controller.
The next step is to set up the CNC machine for the job. This involves choosing the appropriate tooling and configuring the machine settings. The settings will depend on the material being machined, the desired tolerances, and other factors.
Once the machine is set up, the operator will load the file containing the part model into the controller and start the cycle. The machine will then cut and shape the material according to the programmed instructions. Afterward, any necessary finishing operations can be performed on the part.
The different types of part junction plates
There are many different types of part junction plates that can be used in CNC machining. The most common type is the T-slot plate. This type of plate has slots that are cut into the plate so that the workpiece can be attached to the plate with screws or bolts. There are also clamping plates, which have clamping jaws that hold the workpiece in place. These types of plates are used when a more precise alignment is needed or when there is a need to keep the workpiece from moving during machining.
The pros and cons of part junction plate CNC machining
CNC machining is a process that involves the use of computer numerical controls to create parts from raw materials. The process can be used to create both small and large parts, and can be performed on a variety of materials, including metals, plastics, and composites. There are several advantages to using CNC machining, including the ability to create complex parts, the accuracy of the process, and the repeatability of the process. However, there are also some disadvantages to using CNC machining, such as the cost of the equipment and the set-up time required for each job.
How to choose the right part junction plate for your project
There are a few things to consider when choosing the right part junction plate for your project. The first is the material. Junction plates are available in a variety of materials, including aluminum, brass, and stainless steel. Each has its own benefits and drawbacks, so it’s important to choose the one that will best suit your needs.
Another thing to keep in mind is the size of the junction plate. Part junction plates come in a variety of sizes, so it’s important to choose one that will be able to accommodate all the parts you need to connect.
Finally, you’ll need to consider the finish of the junction plate. Some are available with a brushed or polished finish, while others are left as-is. Again, it’s important to choose the one that will best suit your needs.
If you keep these things in mind, you should be able to find the perfect part junction plate for your project.
Part Junction Plate CNC machining tips and tricks
CNC machining of junction plates can be challenging, especially when trying to achieve tight tolerances. Here are some tips and tricks to help you get the most out of your CNC machine when machining junction plates:
1. Use sharp tools. When machining junction plates, it is important to use sharp tools. This will help to avoid chipping and ensure a clean cut.
2. Set up your machine properly. Before starting to machine a junction plate, make sure that your machine is set up properly. This includes ensuring that the cutting tools are aligned correctly and that the workpiece is securely clamped in place.
3. Take your time. When machining junction plates, it is important to take your time and focus on making smooth, consistent cuts. rushes can lead to errors and imperfections in the finished part.
